Electrocardiograph

*Genotronics is committed for customer satisfaction and quality. our organization is engaged in Trading, Importing , supplying and service provider we are offering a wide range of Medical Equipment. These equipment are manufactured at hi-tech manufacturing unit under the observations of Expert professionals. Our range is durable, efficient, accurate in results and portable as well. Further these Medical Equipment can be availed from us at reasonable prices.

CM1200 Twelve-channel ECG

Support PC Date management and diagnostic software, HL7 protocol, HIS & PACSsystem. Doctor can view ECG waveform and diagnosis report from computer directly.

First using Cabrera Leads mode. < 2009 international Electrocardiograph standard and diagnose directory > recommends use this Leads mode, helpful for definition and calculating frontal plane axis of myocardial ischemia and Myocardial infarction, can improve determinant of infarction artery, fatalness evaluation, etc.

Diagnosis of coronary heart disease

Diagnosis of atrial & ventricular enlargement

Differential diagnosis of arrhythmia

CM1200A Twelve-channel ECG

12-Lead module

Use 12-lead ECG module and Comen's unique high precision digital filter to synchronically collect, enlarge and process 12 leads, eliminating external interference. Alphanumeric keyboard and touch screen buttons TFT touch screen, ECG operation via alphanumeric keyboard, function keyboard and touch screen buttons Portable design

Convenient for house call

Various Formats: 3×4, 3×4+1R, 3×4+3R, 6×2, 6×2+1R, 12×1, 12×1+T; 1min record of rhythm and leads, average template, Minnesota code etc., diagnosis report & picture printout.

CM1200B Twelve-channel ECG

High performance and accurate measurement

Comen ECG has high performance, Time constant≥5s,stand voltage≥±650mv, provide a strong guarantee for the accurate measurement

Alphanumeric keyboard Button light for button

Features

5.7 inch TFT color screen,
Lead status indication ,
Simple & clear keyboard layout,back light support,
Internal memory of 300 ,
ECG records High accurate digital filter (EMG filter, AC filter, Drift filter, lowpass filter),

122 kinds of diagnosis report,
120 seconds ECG waveforms review and print ,
Support 210mm rolling, Z-folded paper,
USB port for external printer connection & data transmission ,
PC-ECG management system,
Working mode: Auto, Manual, Rhythm,

CM600 Six-channel ECG

300 cases internal memory,ECG storage up to 300 ECGs,
Data transmission to PC via Ethernet or RS232 port ,
USB drive to input & output ECG data,
Built-in rechargeable Lithium battery,at least 2 hours working time.

Lead status map, display the connection status of leads, and accurately indicate which electrode is poorly connected or fallen off,
Automatic measuring and diagnosing function ,
Automatic analysis: 5 types, over 200 cases,
Three work modes (manual/automatic/rhythm of heart) to choose.

Intellectualized paper calibration function solve paper jam and paper deflection problems.

Light and small, handle design, portable for house calls

Powerful analysis and diagnostic software

After studying the three standard databases MIT, CSE and AHA and doing over 100,000 clinical cases in China, Comen has developed an advanced Powerful Analysis and Diagnostic Software Software, ensuring the accuracy and authority of automatic analysis.

110mm width folded or roll paper; Printing format 6 X 2、6 X 2+1R、3 X 4、3 X 4+1R 3 X 4+3R to meet different needs; Automatic measurement and interpretation; Manual/Auto/Rhythm modes selectable.

CM300 There-channel ECG

Precision digital filter

High precision digital filter has strong anti baseline drift function, can eliminate interference waves, and has AC filter, EMG filter, drift filter and low-pass filter.

CM12 ECG Workstation

Comen’s series of ECG machines have excellent performance: time constant≥5s, polarization resistance voltage≥±650mv, greatly ensuring accurate ECG signals.

After studying the three standard databases MIT, CSE and AHA and doing over 100,000 clinical cases in China, Comen has developed an advanced Comen ECG Diagnostic and Analyzing Software, ensuring the accuracy and authority of automatic analysis.

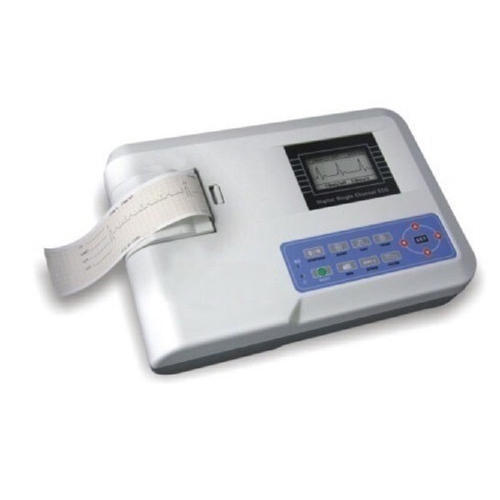

Single Channel ECG Machine

Precision digital filter

Single Channel ECG Machine is a kind of single channel electrocardiograph, which features in printing ECG waveform by thermal printing system, prompting for "Lead off" or "Lack of paper", multi-language interface, recording ECG waveform in Auto/Manual mode, convenient to operate

Product Specification Time Constant : Greater than or equal to 3.2s
Patient Leak Current: Less Than 10 Miu A
Calibration Voltage: 1 mV
Sensitivity : 5, 10, 20 mm/mV +-5%
Standard Sensitivity: 10 mm/mV+-2%
Noise Level : Less Than Or equal to 15 Miu Vp-p
Input Circuit Current: Less Than or equal to 50nA
Sampling Accuracy: 12-bit
Paper Size: 50 mm x 20 m (W x L)
Sampling Frequency: 800 Hz
EMG Interference Filter : 35Hz (-3dB)
Power Frequency Filter: AC 50Hz/60Hz(-20dB)
Paper Speed 25, 50mm/s, +-5%
Voltage: 100-240 V
Working Environment Temperature : 5 Degree C -40 Degree C
Relative Humidity : 25%~95%
Atmospheric Pressure : 500 hPa~1060 hPa
Storage Environment Temperature : -40 Degree C ~ +55 Degree C
Dimension : 315 x 215 x 77 mm ( L x W x H)
Weight : 1.5 kg

Function:

Adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
Adopt high-resolution thermal printing system(8 dot/mm), no need for any adjustments. Recording frequency: up to 150Hz.
Real-time and continuously record the clear and accurate ECG waveform and annotation character(including lead mark, sensitivity, paper speed and filter state, etc.).
In AUTO mode, finish recording by pressing the button once, which improves work efficiency.
Multi-language (Chinese, English, French, Italian, German, Spanish and Turkish) interface and report.
In optimal DC state, up to 7-hour standby time, continuous print up to 4-hour, record up to 150 ECG waveform.
